Home > Creasing Machine > NC350A

NC350A

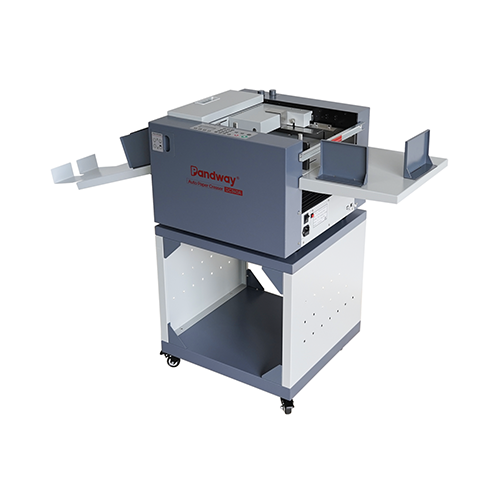

350A(附图1)

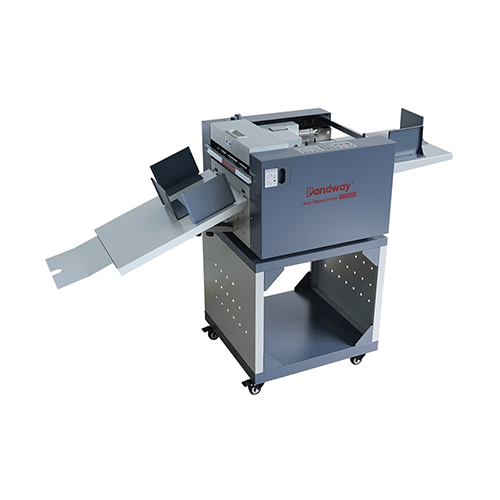

350A附图(2)
NC350A


Product Features

Creasing paper thickness creasing (60-450gsm) perforating (60-300gsm)
Feeding Paper length 150-660mm
Feeding Paper width 210-320mm
Feeding paper height Max.: 80cm
Creasing Paper  Art paper, Coated paperCopy paper
Creasing times for one sheet 0-32 times
Min. creasing distance 1mm
Creasing percision ±0.3mm
Creasing speed 3000sheets/hour
Working procedure 30 groups
Variable creasing  support
Counting function support
Machine voltage 220V 50Hz or 110V 60Hz
Machine power 200W
Machine weight N.W.: 65kgs  G.W.: 70kgs
Machine size 1640×560×400mm


Creasing paper thickness creasing (60-450gsm) perforating (60-300gsm)
Feeding Paper length 150-660mm
Feeding Paper width 210-320mm
Feeding paper height Max.: 80cm
Creasing Paper  Art paper, Coated paperCopy paper
Creasing times for one sheet 0-32 times
Min. creasing distance 1mm
Creasing percision ±0.3mm
Creasing speed 3000sheets/hour
Working procedure 30 groups
Variable creasing  support
Counting function support
Machine voltage 220V 50Hz or 110V 60Hz
Machine power 200W
Machine weight N.W.: 65kgs  G.W.: 70kgs
Machine size 1640×560×400mm
